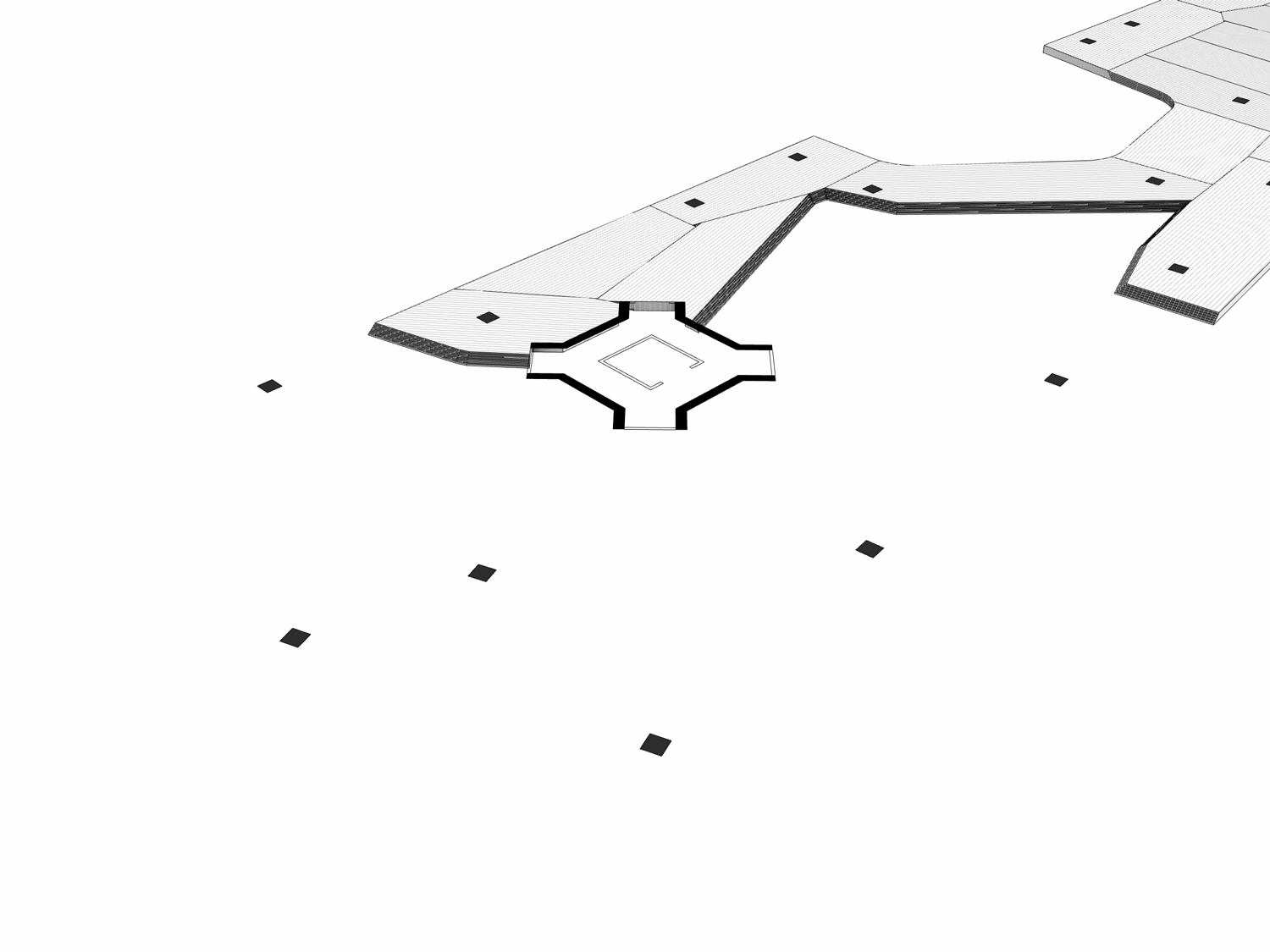

Slab assembly simulation based on critical path sequence
Slab assembly simulation based on critical path sequence
Computational Slab Panelization — 2
Computational Slab Panelization — 3

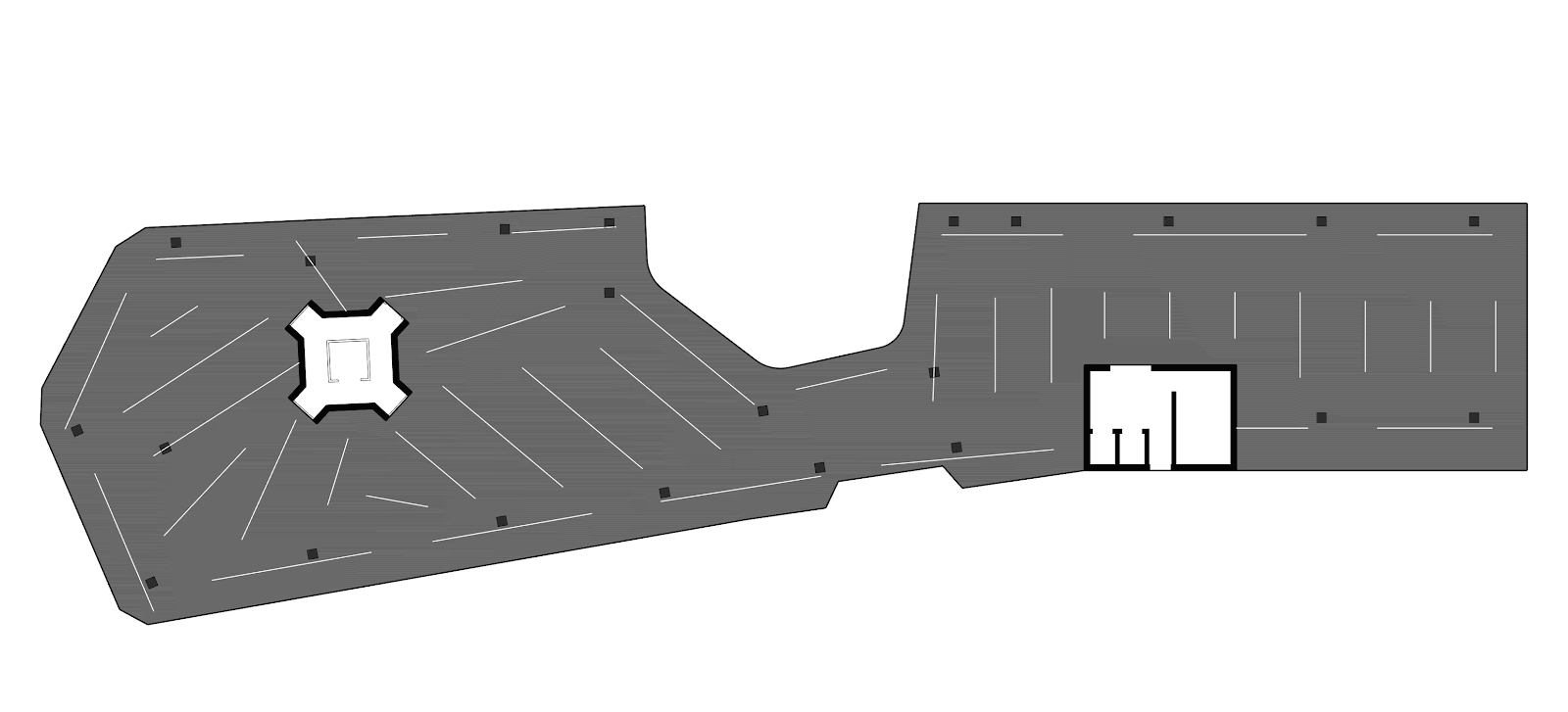

Axis Placement with a "Pill Packing" algorithm
Axis Placement with a "Pill Packing" algorithm
Segmentation with line vornoi and edge simplification
Segmentation with line vornoi and edge simplification
"Rectangularization" of panels based on maximum fabrication area
"Rectangularization" of panels based on maximum fabrication area
Deflection Analysis to determine assembly sequence
Deflection Analysis to determine assembly sequence

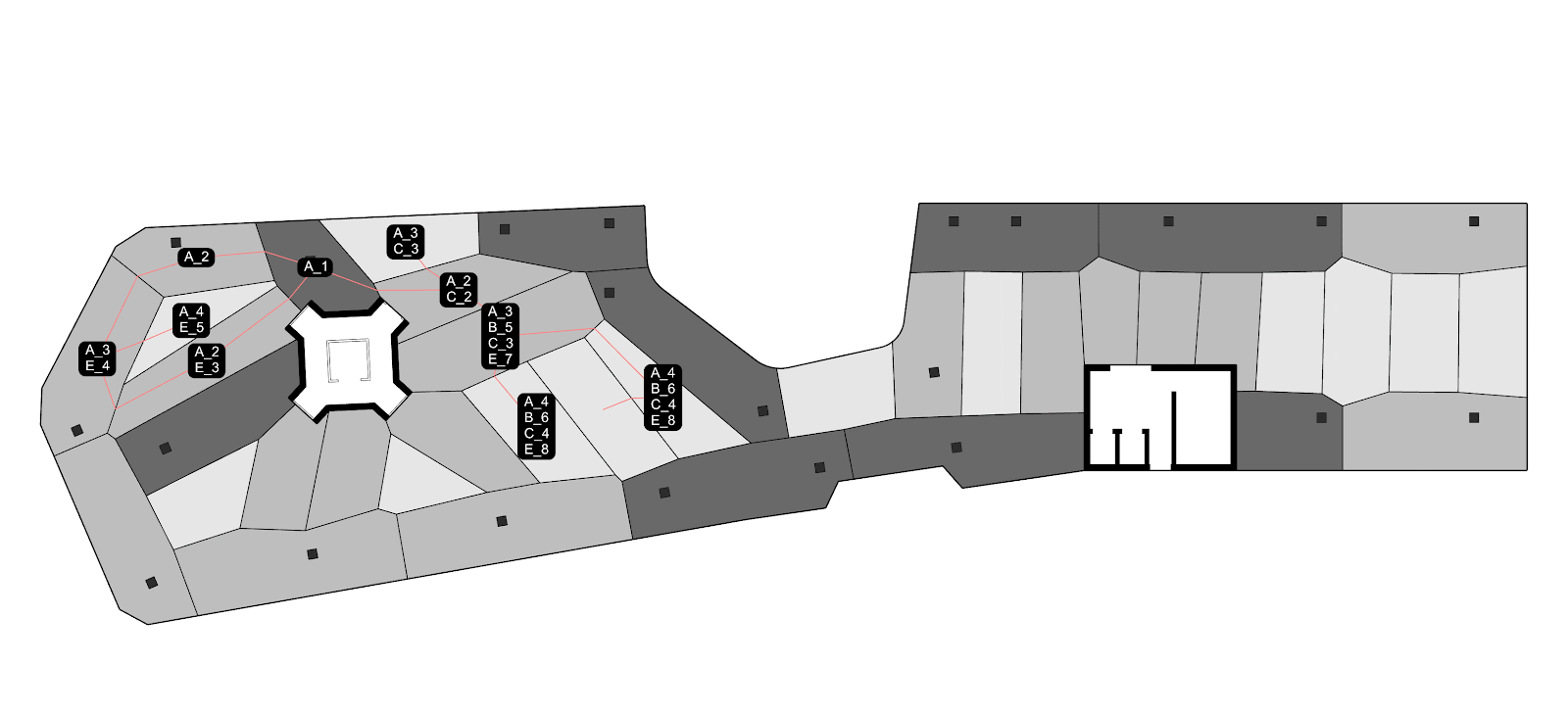

Assembly Sequence Critical Path Analysis
Assembly Sequence Critical Path Analysis
Timber panelization applied to demonstrator model
Timber panelization applied to demonstrator model
1 / 9

Computational Slab Panelization

Panelization Strategies from the Timber Morphology Research Project

A new slab panelization strategy was developed for the ICD’s multi-directional hollow slab system. Through this method, it is ensured that the panels can be placed on regular and irregular arrays of columns. Multiple factors influence the outlining and detailing of panels such as size limitations, structural performance, and assembly sequences.

The strategy consist on the following processes:

Axis Placement: A pill-packing algorithm is used for evenly distributing the slab’s longitudinal axis

Outline Placement: A line Vornoi diagram is used to generate curved outlines. These are post-processed into linear polygons

"Rectangularization": The panel outlines are dynamically pushed to their fabrication space limits to reduce offcuts in panels

Structural analysis: Each panel is ranked from lower to higher deflection

Topology and Sequencing: Connection types are calculated and their assembly order established according to deflection ranks

Joint generation: The stepped joints of the system are generated according to the assembly order and modeled for fabrication

Materials
Cross Laminated Timber (CLT)
Team
Alan Eskildsen Michel, Michael Gosk
Location
Stuttgart, Germany
Year
2020 - 2021
Course
ITECH Studio I and II
Professors
Prof. Achim Menges, Prof. Dr. Jan Knippers
Tutors
Luis Orozco, Hana Svatos-Raznjevic, Anna Krtschil, Gregor Neubauer
Institutes
ICD (Institute for Computational Design and Construction), ITKE (Institute of Building Structures and Structural Design)
University
Universität Stuttgart
